Product model：86SN18114-460-TR15.875*xxxx-300-01
Product name：Screw Lead Motor
? Rated voltage: 4.8VDC
? Rated current: 6.0A
? Frame size: 86mm
? The diameter of the screw rod is 15.875mm, and the pitch is optional
? Screw length can be customized


AttributeUnitValue
Basemm86
Phase2
Microstep1.8°
Length of Motormm114
Diametermm15.875
Length of Screwmm300
Thread Leadmm

2.54

3.175

5.08

6.35

12.7

25.4

Full Stepmm

0.0127

0.015875

0.0254

0.03175

0.0635

0.127

VoltageV4.8
CurrentA6.0
RisstanceΩ0.8
InductanceMh8.5
Rotor Inertiag.cm22500
Holding TorqueN.m8.5
Lead out Line4
Working Temp-20℃~+50℃
Temp RiseK80
Insolution ClassB
CertificateRoHS

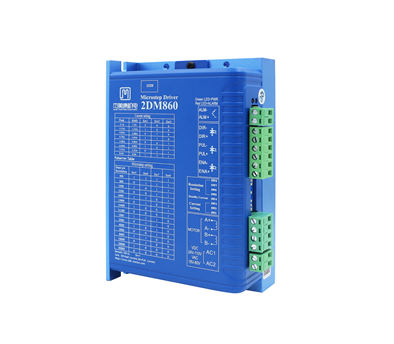

2 Phase Stepper Driver 2DM860 View details
